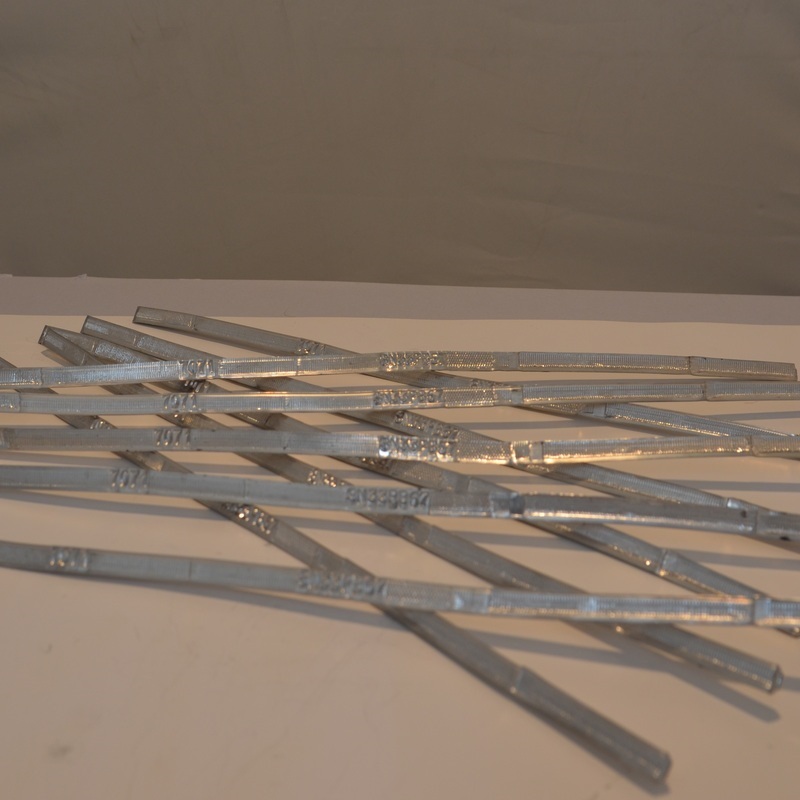

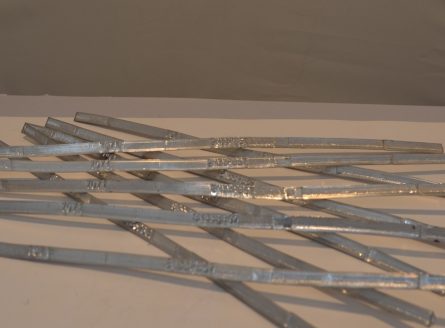

Alloy SAC305

 Alloy S-Sn96.5 Ag3.5 Cu0.5

General Characteristics

• Ternary soldering alloy, lead free, used in the related electronic industry as well as in medical and food applications
• The lowest melting point of the lead free alloys: 217°C
• Very good mechanical strength
• Shinning alloy, good capillarity
• Satisfying electric conductance

Physico-Chimical Characteristics

•  Tin rate “Sn”                            Rest
• Copper rate « Cu »                    0.3 % à 0.6 %
• Silver rate « Ag »                     3,0 % à 3,4 %
• Melting temperature                 eutectic 217°C
• Specific gravity                         7.3
• Mechanical Strength                 Brinell hardness :14.8 H.B.
• Electric conductance                 14% IACS
• Electric resistance                     12.3 µ Ώ cm

QUALITY INSURANCE

Each delivery is identified by its manufacturing batch with the corresponding certificate of analysis

 Standard

International                             ISO 9453
